To learn you  everything you don't want nor need to know about Bill's "(pottery)-kiln-temperature" project / gadget / system(s) ...



Webpage_images/OTbox_2.jpg

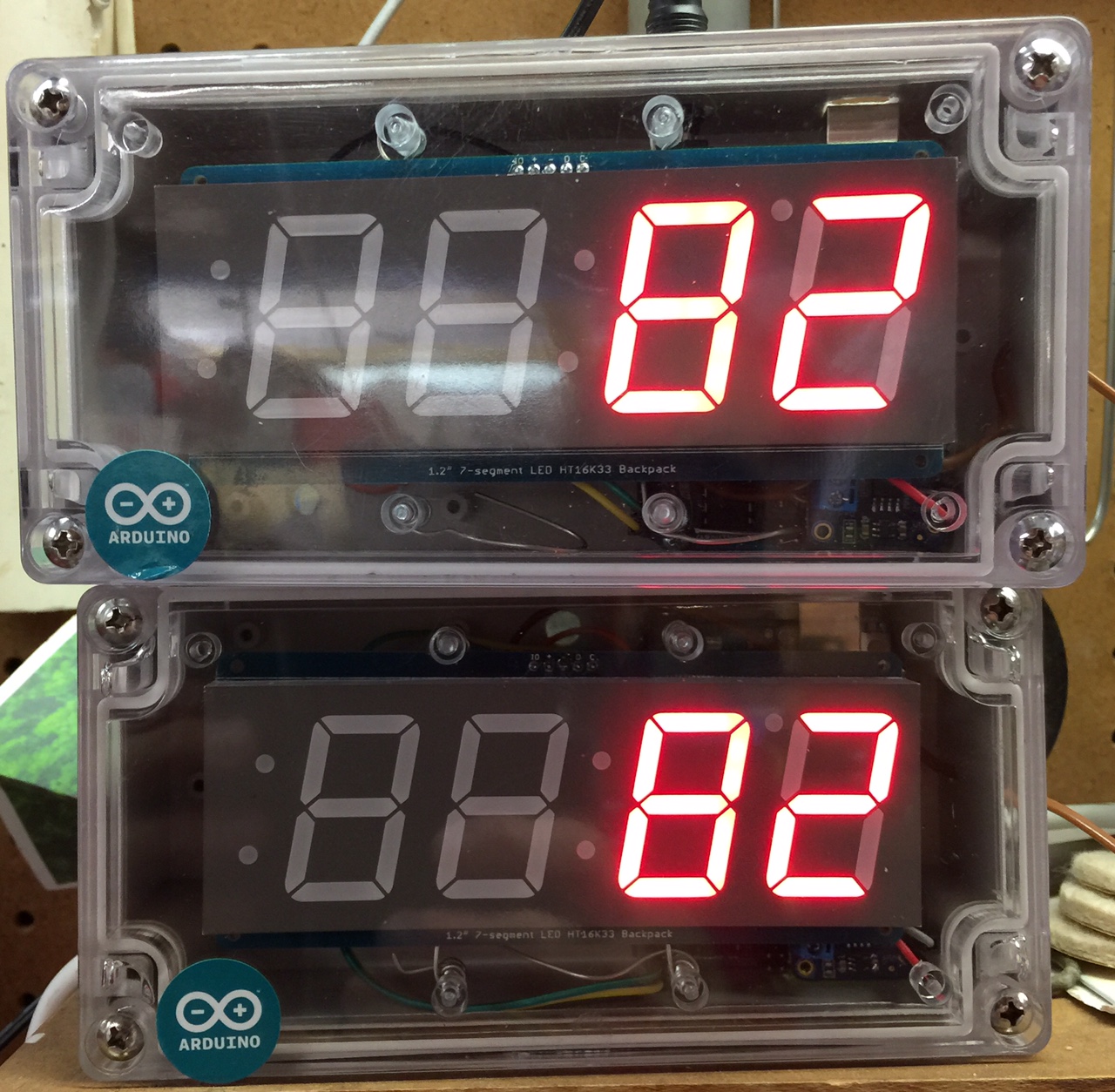

This is a picture of TWO of our 'new unit'.    It uses our newly  arrived (March 2015, from Shanghai, no less) "project-box".

The above picture is 'about' real-size.



Webpage_images/OTbox_holescables.jpg

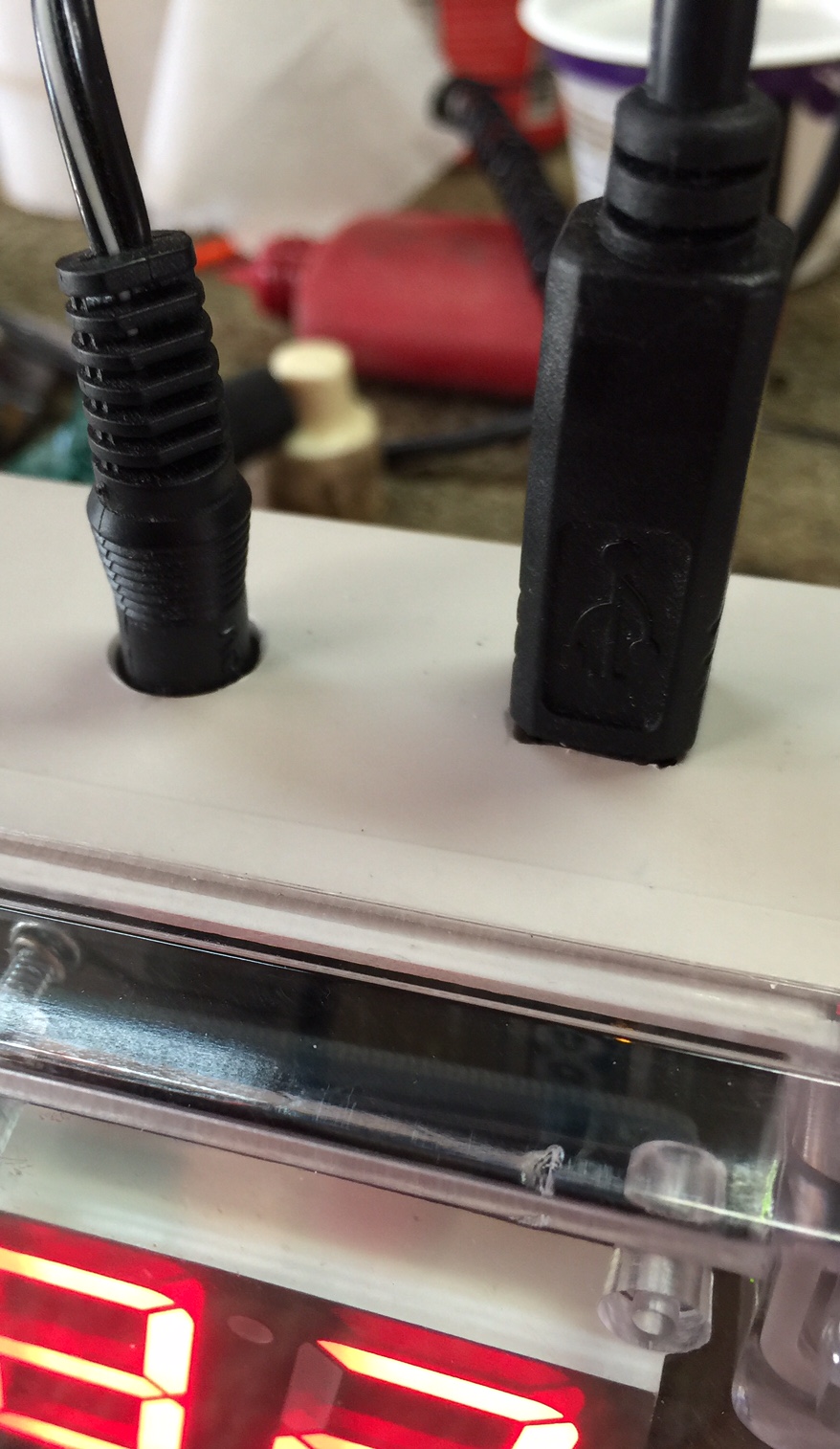

Though this picture shows two cables plugged-into-the "OmniTemp" box at the same time,
this is ONLY for photo-purposes, one should NEVER, EVER plug in both cables at the same time...


Webpage_images/OT1_Arduino_sm.jpg

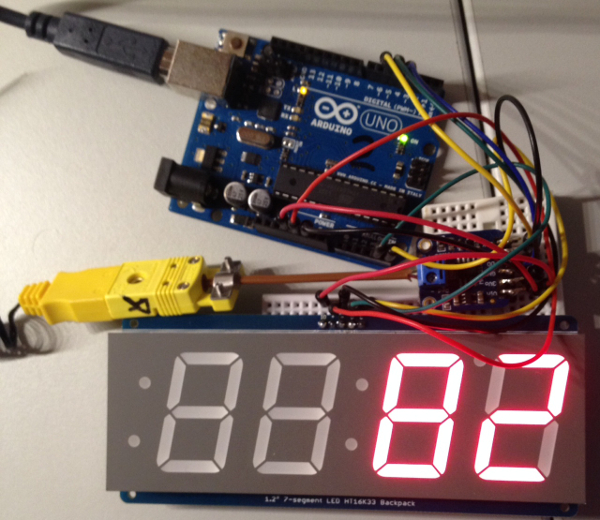

This picture is 'just the components' (the Arduino microcontroller-board, the Max Integrated 31855 chip and a small breadboard; the connection to the "K-type" thermocouple is the small yellow connector)

OmniTemp1  (Arduino based):

        Big Red Numbers, dynamic temperatures in 'nearly' real-time and that is ALL it gives you.


OmniTemp1x  (Arduino based):

       Big Red Numbers AND a data-file on a laptop screen,

        AND a saved-file (in ...csv or ...tdf (some call this 'tsv' or 'tabbed-format') or ...txt formats) for post-processing,

       HOWEVER: it REQUIRES: a laptop (with "CoolTerm" software (free)) at the kiln area (and 110volt-wall-power (and Internet if you want 'connectivity'))


OmniTemp2  (Raspberry Pi based): (rare, but possible!)

        A 'real' computer ("Raspberry Pi" - a Linux computer with 16 gigabytes of 'hard-disk'  and 1/2 gig of memory,  python, ethernet, USB, HDMI and ...)

        Note for OmniTemp2 prospective buyers: this is a 'Real' computer and as such it has an "Operating System" - which is Linux.... If you do NOT KNOW "Linux" - then you will need some books or tapes or videos or something to LEARN (some) Linux...   If you know Mac OS "X", then you HAVE Linux (whether you know it or not)...   If you have / know Windows, then you'll have a bit larger 'hill to climb' to learn (some) Linux.

When you ask for greater functionality (OmniTemp2 versus OmniTemp1 or OmniTemp1x) then you have to 'give-up' something - which, in this case is your TIME to learn and understand Linux.  This version of Linux uses a mouse and a GUI and such and if you stick to that - it's very much like Mac OS "X" and/or Windows (XP or 7), but learning and knowing SOME Linux will surely make your transition from Mac OS "X" or Windows to Linux more 'seamless'...

ONE of the 'advantages' of using this system is that there is / are a multitude of data-file-options that are a side-benefit of having a 'real' computer used...

YOU will have to decide on the 'mounting' (box-type) and where you locate the 'system' - it can NOT be hotter than about 120 F, so keep that in mind...


==== If you don't have a lot of time, read this 60 second SUMMARY: ====

    What is it, what does it do, and how does it do it?:

    It is a 'kiln-temperature-monitoring system' who'soutput is:

END of " 60 Second Summary "


OmniTemp1  (sometimes called 'Version 1:' - Arduino based)

 IF you want something that ONLY measures temperature, has NO computer-storage, NO data-manipulation functionality,  ALL that it does is display a temperature
(assuming you plug a K-Type thermocouple into it (and power it from either a computer's USB port or just a USB-transformer / AC-DC converter)) AND YOU WANT BIG (1.2" high) RED numbers you can see clearly from 5 meters away (even in the sun (a sun-shield on the box may be necessary)) - then you want I'm calling an OmniTemp1 (pictured below)...

Webpage_images/Arduino.jpg

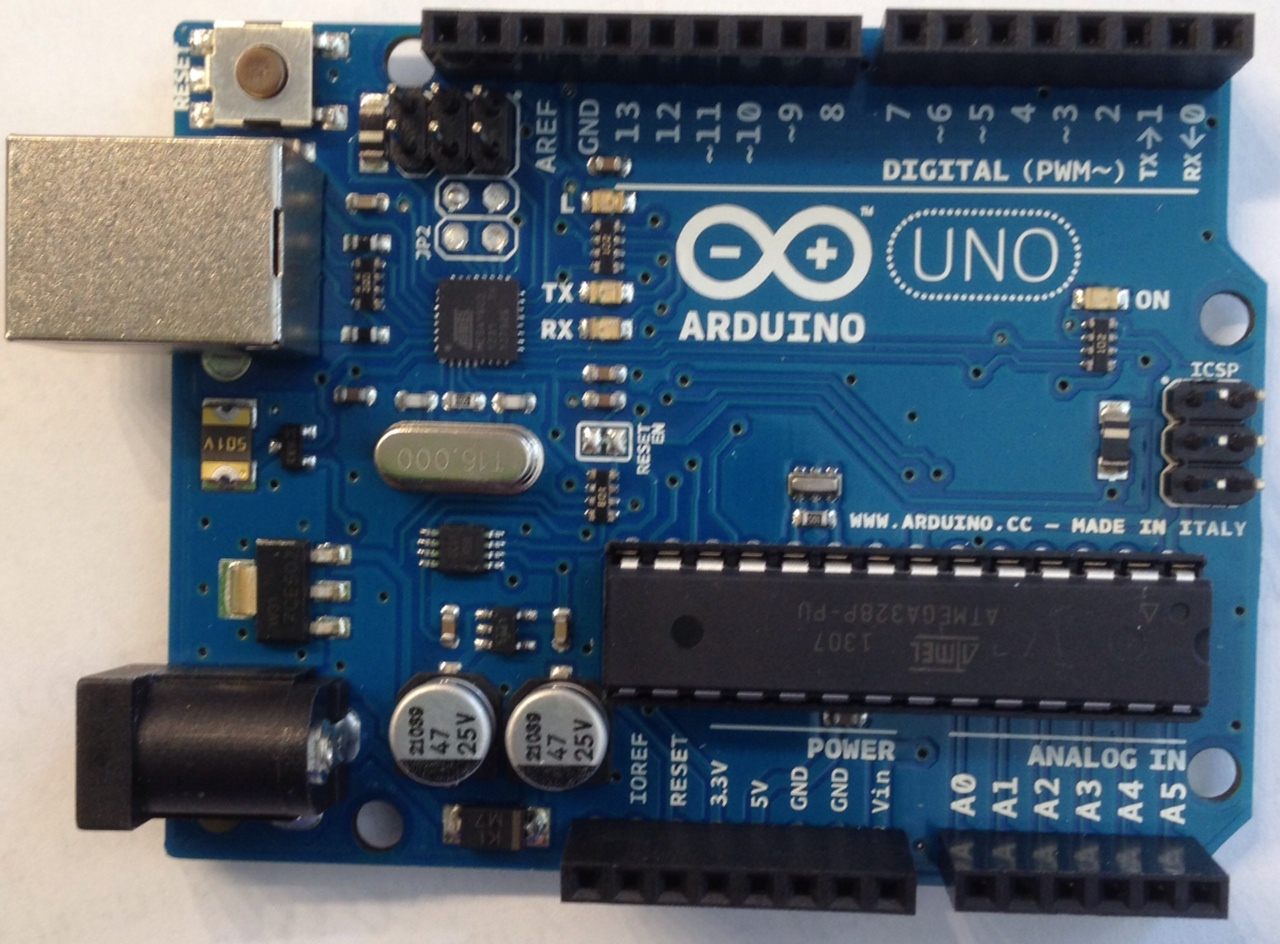

This is the 'Arduino' micro-controller-unit (MCU) that is at the 'heart' of the OmniTemp1

The "Arduino" can be programmed by any computer with a USB interface (the small silver
box in the upper-left is the USB type "B" connector),

OR it can 'just be powered' by the USB-cable from either a computer or from an AD to DC
converter that plugs into a standard wall outlet...

IF IF IF we go 'beyond' using the Arduino to 'display' the temperature (that is IF we use the Arduino to 'log'
temperature readings (for later analysis and/or for real-time-plotting)) and display them to the kiln-minders,
then we MUST use a 'serial-port-monitor' software tool.
This is the one we've chosen.  THERE ARE OTHERS, but this one has worked quite well and the man who wrote
this software tool has been quite supportive & helpful when we've asked for changes.


O.K, - O.K. you think you need an Omni-Temp - BUT _ before you break-out the check-book, let's review - for just a few moments - four basic principles of computing, and make-sure you understand what you're letting-yourself-in-four... - Let's make sure that I - along with you, are using the same terms and we LIMIT the amount of data, temperature, and other such things that you're about to deal with

PLEASE READ THIS document:  OC_computer.html


one last picture of something pretty stunning in it's 'ugliness', but also very functional, in it's internals... this is a 'custom' item - only available to those with a BIG KILN and a BIG NEED for OmniTemp, (read this as BIG DOLLARS!)

Webpage_images/OT_quad2_sm.jpg

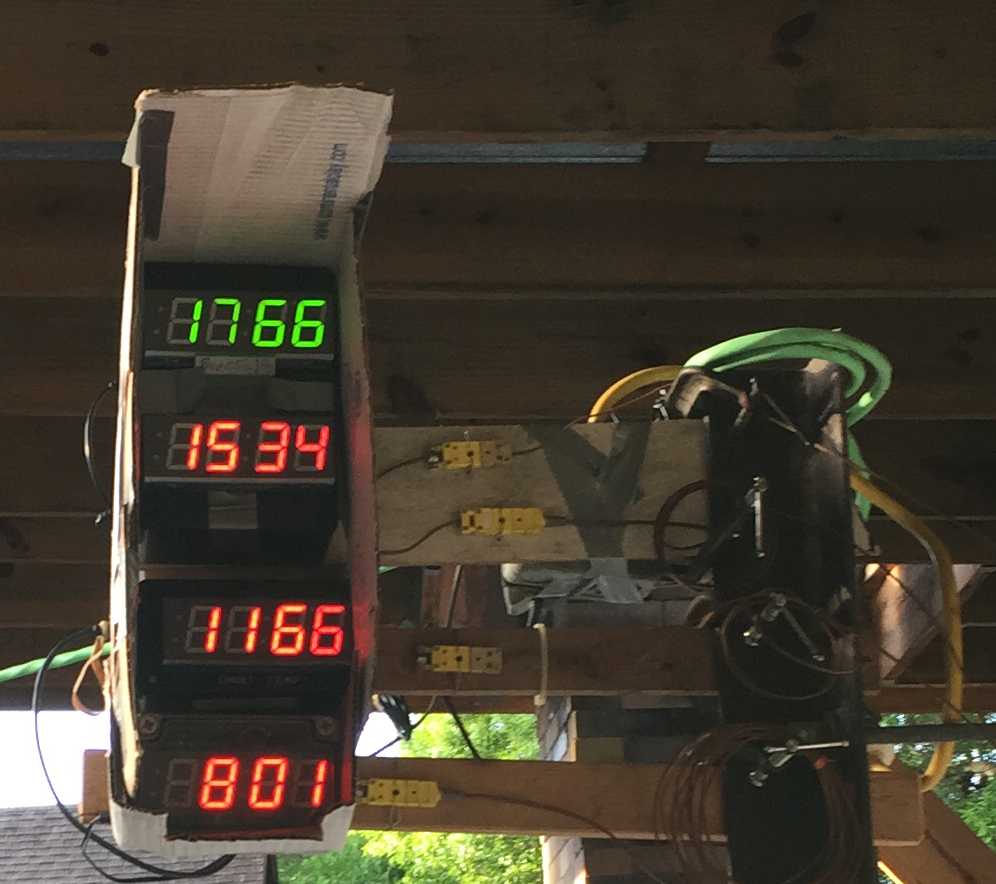

This is loosely called the 'OminTemp quad', and this is the ONLY ONE ever made...  Needless to say there is a LOT of wiring going on - some of which you can see, some of which you can not see (and that's probably a 'good thing').

AND there is a 'sun-shade' made 'on-the-fly' from a cardboard box and more duct-tape than we'd like to admit...   That sunshade has many pros and many cons and the reason for the cardboard and duct tape is COST.    I'm not about to throw 'development dollars' away on something people don't want.  The 'jury is still out' on this sunshade idea, it is NOT something 'offered as an additional item' - it is something that the customer can invest in on their own if they choose to...

"Some Assembly Required" (for the SunShade!) as they say...
